Descripción

El SICOM3028GPT es una plataforma modular inteligente todo en uno (All in one) que integra IEEE1588v2, Sync-E, full gigabit y disponibilidad tanto de capa 2 (Layer 2) como de capa 3 (Layer 3), diseñada específicamente para operar de manera confiable en subestaciones de servicios eléctricos y entornos industriales climáticamente exigentes. El SICOM3028GPT soporta puertos de fibra / cobre de hasta 28 gigabits, cumple con los estándares IEC61850 e IEEE1613. El SICOM3028GPT es un dispositivo de montaje en rack de 1U de 19 pulgadas y admite una ranura de 1U y seis ranuras de 0.5U que ofrece la máxima flexibilidad para una fácil expansión.

El SICOM3028GPT soporta IEEE1588v2 y el protocolo Ethernet síncrono con sellado de tiempo de hardware y admite BC, P2P TC y E2E Modos de reloj TC, alcanza una precisión de temporización de 100 ns. Admite Power Profile y Telecom Profile, y admite muchos módulos para sincronización síncrona como TimeServer, GPS e IRIG-B, etc. El SICOM3028GPT admite muchas funciones de software de capa 2, como puerto, VLAN, multidifusión, QoS, anillo redundante rápido y funciones de capa 3 tales como VRRP, RIP, OSFP, IGMP y PIM. Soporta administración por Consola, Telnet, Web y software de gestión de red basado en SNMP. Al expandir el módulo de servidor en serie, el producto puede proporcionar hasta 24 puertos en serie RS232 / 422/485.

En la actualidad, el producto se usa ampliamente en subestaciones inteligentes y en muchos otros sistemas de comunicación industrial. Los dispositivos cuentan con garantía de fábrica de 5 años.

SOLICITA MÁS INFORMACIÓN

Características

Plataforma Switch Multifunción

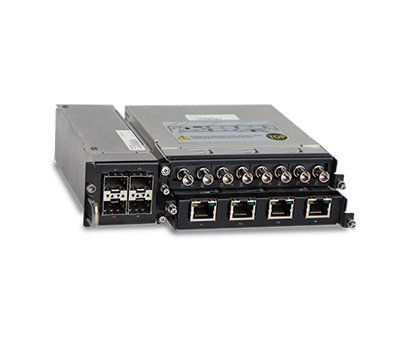

  • Diseño modular flexible para una fácil expansión, admite un máximo de 28 puertos de fibra / cobre de gigabit.
  • Admite DT-Ring, DRP, MSTP y VRRP para redundancia de red.
  • Admite protocolos de enrutamiento de capa 3 (Layer 3) como RIP y OSPF.
  • Admite IEEE1588v2 y la precisión de sincronización alcanza ± 100 ns, admite Ethernet síncrona ITU-T.G.8261 / G.8262 y la precisión de sincronización alcanza ± 50 ns.

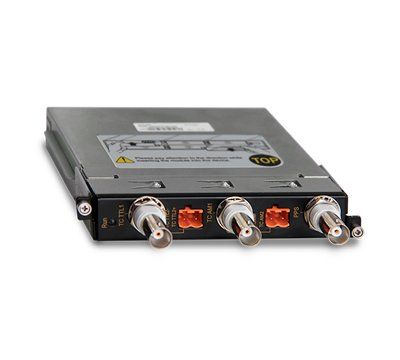

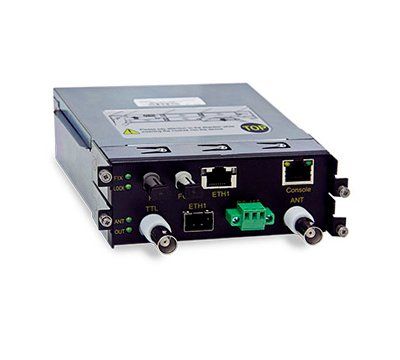

  • Admite el módulo TimeServer, el módulo GPS, el módulo IRIG-B, el módulo de activación TMS y el módulo de servidor serie.
  • Admite la gestión de IEC61850 MMS.
  • Soporta prueba de cable.
  • Cumple con IEC61850-3 e IEEE1613.
  • Cuenta con certificaciones KEMA, CE, FCC, EN50155 / 50121
Ethernet

Especificaciones técnicas

Plataforma Switch Multifunción

Software functions

 Switching function

Supports VLAN and PVLAN.
Supports port aggregation.
Supports flow control.
Supports broadcast storm suppression.

Redundancy protocol

Supports DT-Ring, DT-Ring+, and DT-VLAN and the recovery time<50 ms.
Supports DHP and DRP and the recovery time<20 ms.
Supports RSTP/MSTP and compatible with STP.

Multicast protocol

Supports IGMP snooping.
Supports GMRP.
Supports static multicast.
Supports GOOSE over IP tunnel (receiver)(Web interface doesn't support)

L3 function (part of sub-models support)

Supports ARP proxy
Supports RIPv1/v2.
Supports OSFPv2.
Supports static routing.
Supports VRRP.
Supports IGMP
Supports PIM SM
Supports GOOSE over IP tunnel (sender) (Web interface doesn't support)

Security

Supports IEEE 802.1x.
Supports HTTPS/SSL.
Supports SSH.
Supports SFTP
Supports RADIUS.
Supports TACACS+.
Supports user grading.
Supports MAC address binding.
Supports port isolate.

Service quality management

Supports ACL
Support 802.1p(CoS),DSCP
Supports SP and WRR queuing.

Management and maintenance

Supports Console, Telnet, and Web management methods.
Supports SNMPv1/v2c/v3 and can managed by Kyvision.
Supports IEC61850 MMS management.
Supports file transfer and software update over FTP and TFTP.
Supports the IP/MAC address conflict alarm, power failure alarm, power alarm, temperature alarm, port linkdown alarm, port traffic alarm, CRC and packet lose alarm, CPU alarm, memory alarm, Sfp port rx power alarm, transceiver alarm and ring alarm (Web interface doesn’t support address conflict alarm. Sfp port rx power alarm, transceiver alarm need supported by hardware).
Supports port mirroring.
Supports cable test.
Supports loop detection
Supports CRC protection
Supports Syslog.
Supports RMON
Supports LLDP.
Supports Link-check.
Supports NTP and SNTP.
Supports RTC.

IP address management

Supports Bootp.
Supports DHCP server/client.
Supports Up to 16 different IP addresses and VLAN for system management

Time synchronization (part of sub-models support

Supports PTPv2 (IEEE1588-2008).
Supports Power profile (C37.238).
Supports Telecom profile (in special version).
Supports synchronous Ethernet (ITU-T.G.8261/G.8262).
Supports TMS function.

Product Specifications

Standard

IEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-T)
IEEE 802.3ab (1000Base-T)
IEEE 802.3ad (port aggregation)
IEEE 802.3z (1000Base-SX/LX)
IEEE 802.3x (flow control)
IEEE 802.1p (priority)
IEEE 802.1Q (VLAN)
IEEE 802.1w (RSTP)
IEEE 802.1s (MSTP)
IEEE 802.1x
IEEE1588-2008 (PTPv2)
ITU-T.G.8261/G.8262 (synchronous Ethernet)

Switch properties

Priority queue: 8
Number of VLANs: 4K
VLAN ID: 1–4093
Number of multicast groups: 256
Routing table: 8K (L2 chassis do not involve)
MAC table: 16K
Packet buffer: 12Mbit (SICOM3028GPT-L3F/L3FT/L3G/L3GT), 8Mbit (SICOM3028GPT-L2F/L2FT/L2G/L2GT)
Packet forwarding rate: 41.7Mpps (SICOM3028GPT-L2G/L2GT/L3G/L3GT), 9.5Mpps (SICOM3028GPT-L2F/L2FT/L3F/L3FT)
Switching delay: < 10 μs
Jumbo Frame Size: 10 KB

Interface

Console port: Mini USB, RJ45
Alarm contact: 3-pin 5.08mm-spacing plug-in terminal block, 250 VAC/220 VDC Max, 2 A Max, 10A@1s, 60 W Max
Slots for module: 1U: 1, 0.5U: 6

LED

LED on front panel
Alarm LED: Alarm
Running LED: Run
Ring Role LED: Ring
Synchronization finish LED: Lock
Power LED: PWR1, PWR2
Port LED: Link/ACT
Port speed LED: Speed
LED on rear panel
Port LED: Link/ACT
Port speed LED: Speed

Power Requirements

Power input:
24VDC (18-36 VDC)
48VDC (36-72 VDC)
100-240VAC,50/60Hz;110-220VDC (85-264VAC/77-300VDC)
Power terminal: 5-pin 5.08 mm-spacing plug-in terminal block
Power consumption: < 40 W
Overload protection: Support
Reverse connection protection: Support
Redundancy protection: Support
Hot Swappable: Support

Physical Characteristics

Housing: Metal
Cooling: Natural cooling, fanless
Protection Class: IP40
Dimensions(W×H×D)： 482.6 mm × 44 mm × 359.7 mm (19×1.73×14.16 in.)
Weight: < 10 Kg (22.046 pound)
Mounting: 19 inch 1U rack mounting

Environmental limits

Operating temperature: -40°C to +85°C (-40°F to 185°F)
Storage temperature: -40°C to +85°C (-40°F to 185°F)
Ambient Relative Humidity: 5% to 95% (non-condensing)

Quality assurance

MTBF:
360000h (SICOM3028GPT-L2F/L2G)
359000h (SICOM3028GPT-L2FT/L2GT)
371000h (SICOM3028GPT-L3F/L3G)
368000h (SICOM3028GPT-L3FT/L3GT)
Warranty: 5 years

Approvals

KEMA: Models with power supply of HV:100-240VAC,50/60Hz;110-220VDC
CE: All models
FCC: All models
EN50155: Models with power supply of HV:100-240VAC,50/60Hz;110-220VDC

Industry standard

EMI
FCC CFR47 Part 15, EN55022/CISPR22, Class A

EMS
IEC61000-4-2(ESD) ±8 kV (contact), ±15 kV(air)
IEC61000-4-3(RS) 10 V/m (80 MHz-2 GHz)
IEC61000-4-4(EFT) Power Port: ±4 kV; Data Port: ±2 kV
IEC61000-4-5(Surge) Power Port: ±2 kV/DM, ±4 kV/CM; Data Port: ±2 kV
IEC61000-4-6(CS) 3 V (10 kHz-150 kHz); 10 V (150 kHz-80 MHz)
IEC61000-4-8 (power frequency magnetic field) 100 A/m(cont.), 1000 A/m(1s-3s)
IEC61000-4-9 (pulsed magnetic field) 1000 A/m
IEC61000-4-10 (damped oscillation) 100 A/m
IEC61000-4-12 (oscillatory wave) 2.5 kV/CM, 1 kV/DM
IEC61000-4-16 (common mode conduction) 30 V(cont.), 300 V(1s)

Machinery
IEC60068-2-6 (vibration)
IEC60068-2-27 (shock)
IEC60068-2-32 (free fall)
