GPS Time Servers
Description
We have different solutions related to GPS Time Servers, Time Distributors, PTP time converters for different types of mounting on both DIN rail and Rack.The devices carry a 5-year factory warranty.
Solutions and references
GPS Time Servers
Reference

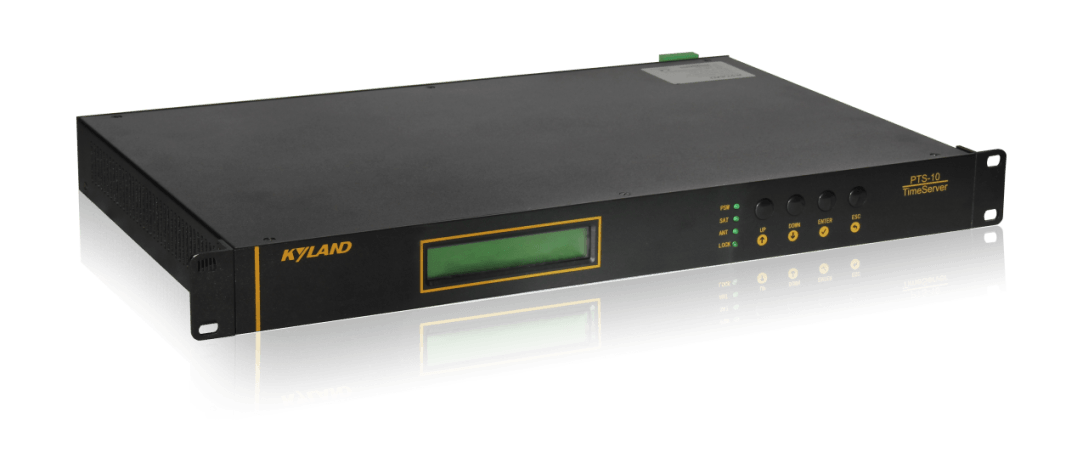

PTS-10A
1U Rack Mounting Time Server
characteristics
- 1U 19 Inch Rack Mount Time Server
- Supports up to 2 100 / 1000M combo ports
- 100-360VDC / 85-264VAC or 48VDC, redundant power inputs
- Dual satellite channels (GPS, BDS, GLONASS optional)
- Supports built-in rubidium clock, TCXO or OCXO for remaining time
- Supports a safe and reliable multi-source selection algorithm to ensure time output accuracy
- Supports front panel LCD display and key operation
- Supports up to 10 BNC ports for TTL PPS / IRIG-B (DC) or 4 BNC ports for IRIG-B (AC) 6 BNC ports for TTL PPS / IRIG-B (DC)
- Supports 2 DB9 ports for RS232 TOD
- Support time status management function
- Web support, SNMP management
Reference
PTS-DR200
DIN Rail Time Server
characteristics
- Compact DIN rail installation design
- High precision reference clock as absolute time source (GPS, BDS, GLONASS)
- Relative reference time and external time synchronization (PTP, IRIG-B)
- High precision stable OCXO oscillator with excellent timing performance
- Supports PTP, NTP, IRIG-B, PPS, TOD output
- Report the weather status by SNMP, IEC61850 MMS, IEC60870-5-104 and DNP over TCP etc.
- Web management system, SNMP, etc. of support
Reference
PTD-10
Time Distributor with Rack Mounting
characteristics
- Maximum 2 inputs as redundancy time source for best time source selection。
- Maximum 16 output ports can connect more IEDs
- Support BNC, terminal, optical interface
- Supports IRIG-B signal with B000, B001, B002, B003, B004, B005, B006 and B007
- Cable delay compensation can be set manually
- The alarm contact indicates the status of the device
- LCD time display
Reference
PTC2000
Time Convertor with DIN Rail
characteristics
- Compact DIN rail installation design
- PTP support, IRIG-B time input
- Supports PTP, NTP / SNTP, IRIG-B, PPS, TOD time out
- Support web management system
- Optional high performance OCXO with excellent time keeping performance
